Coarse-pitch 2-flute solid carbide end mill for roughing mould cavities in hardened steel and pre-hard materials. High chip evacuation, stable roughing.

General-purpose 4-flute TiAlN solid carbide end mill for finishing 3D contours in hardened steel, mould steel and alloy steel.

Polished-flute 3-flute uncoated end mill for non-ferrous metals — aluminium, copper and brass. Anti-stick geometry for clean edges.

Multi-row indexable corn cob milling cutter for high-speed, high-feed roughing of moulds and dies. Stable, deep cutting with small stepover.

Single-row carbide thread mill for internal and external metric (M) threads on CNC machining centres. One tool for many thread sizes and hand of thread.

Made-to-order solid carbide form cutters, profile cutters and special geometry tools built from your drawing or sample. Fast lead times.

Carbide-tipped milling cutter disc for high-volume woodworking and metal profile cutting. Re-sharpenable body with replaceable carbide teeth.

Multi-function combination cutting tool merging drilling, boring, countersinking and chamfering into one tool, for high-efficiency automated machining.

Dynamically balanced precision tool holders (BT / HSK / CAT) for high-speed machining centres. Stable clamping and repeatable accuracy.

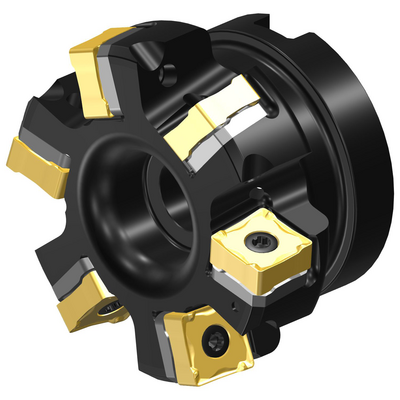

Indexable face mill body and arbor for shoulder and face milling of large flat surfaces. High rigidity, low cutting force design.

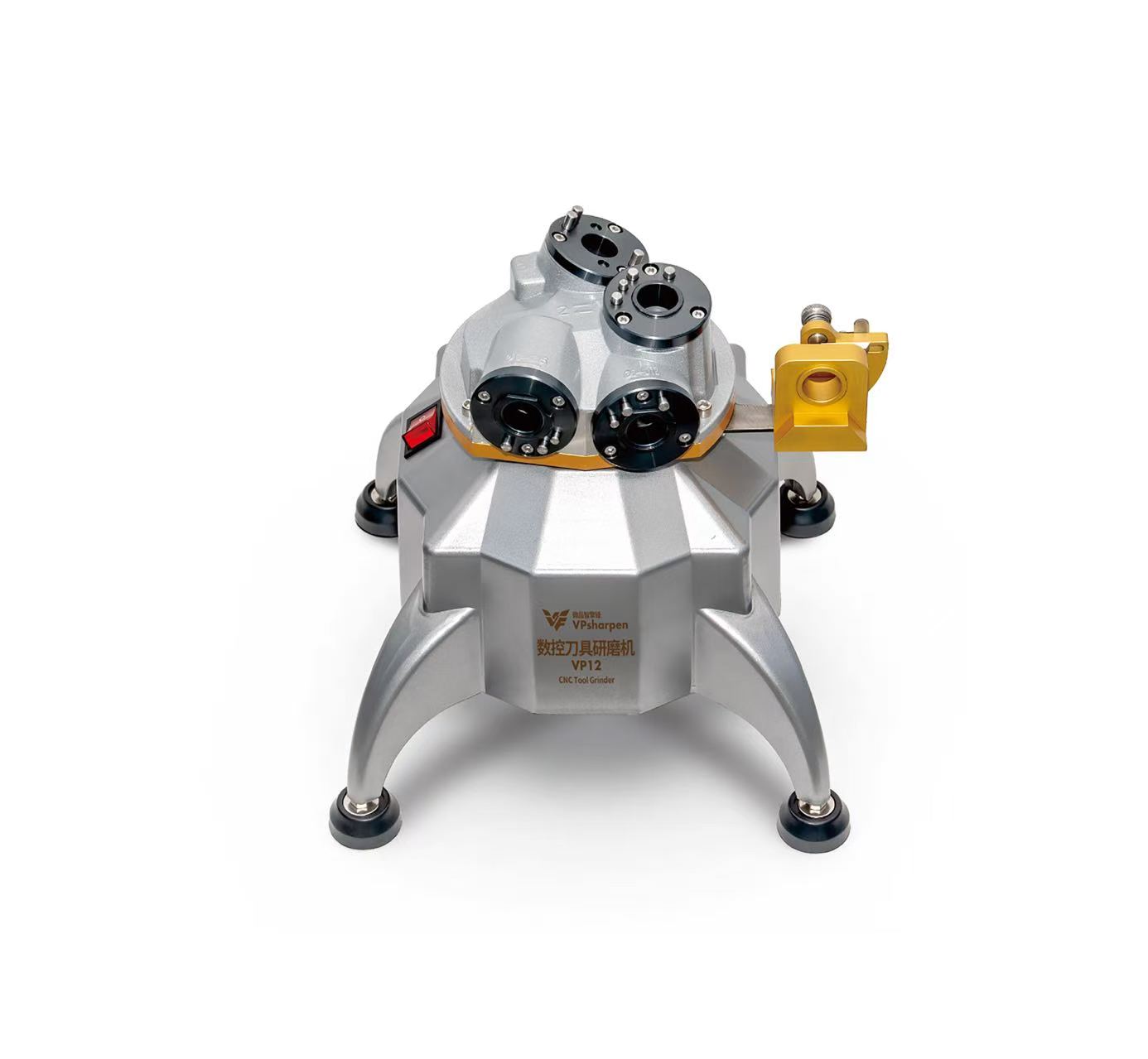

Fool-proof automatic grinding machine for restoring end mills, drills and reamers on site. Simple operation, consistent regrind quality.

Compact turn-mill compound machining centre with live tooling and Y-axis. Completes turning, milling and drilling on one setup for shaft and complex parts.

Slant-bed turn-mill machining centre with 12-station servo turret, 11 kW spindle and 530 mm cutting length — machining centres for 5-axis / vertical / gantry applications available on request.

Hydraulic squaring machine mills hexagons, squares and flats on round bar Φ4–50 mm in one cycle — fast, simple and robust for valve, fitting and shaft hardware.

CNC squaring machine with KND control mills 2/4/6/8/12-facet parts on Φ4–50 mm bar with program recall — flexible for multi-product automated lines.

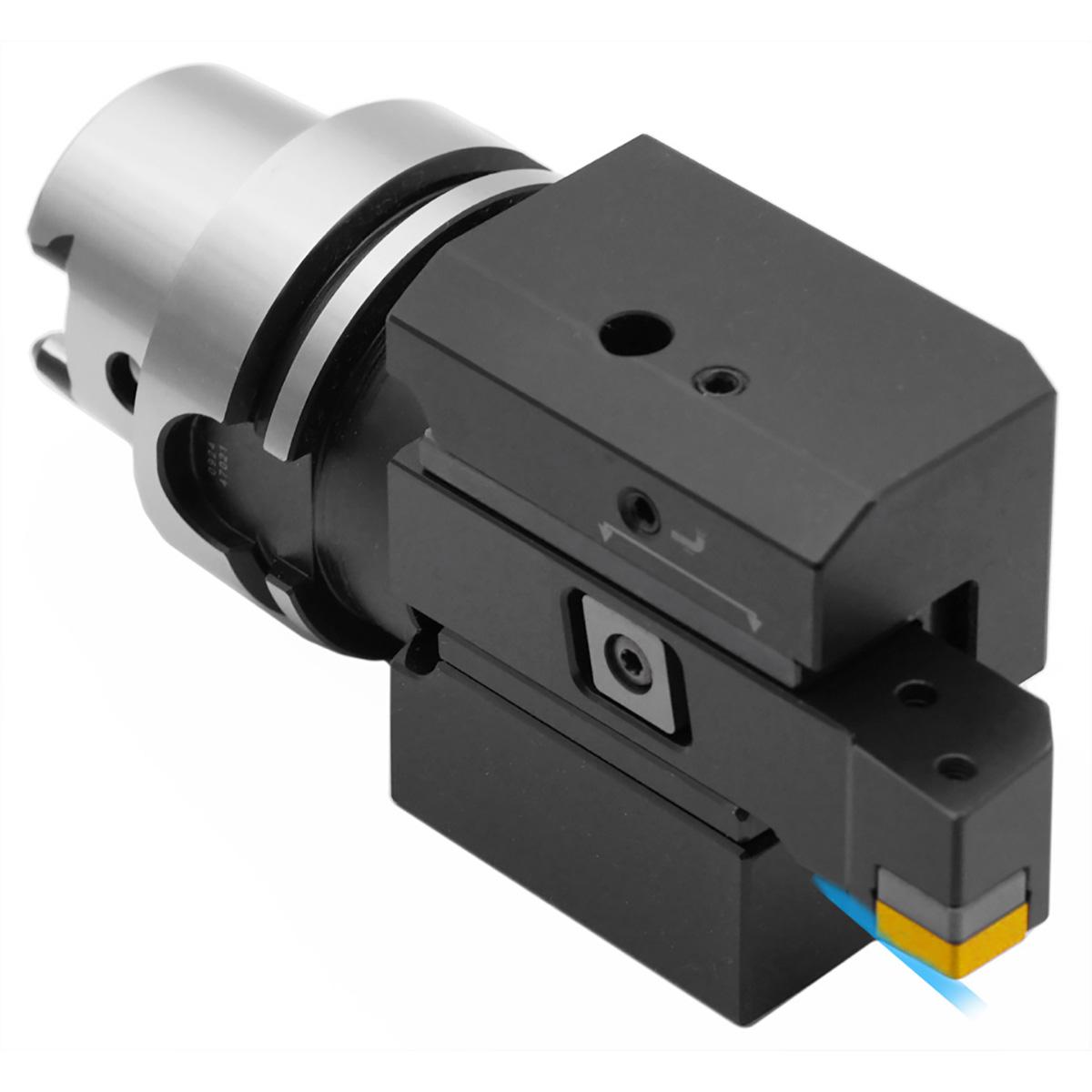

Bolt-on gang tool blocks and compound tool posts for automatic lathes and CNC turning centres — our own tooling mounted on our own holders for true turnkey setups.
